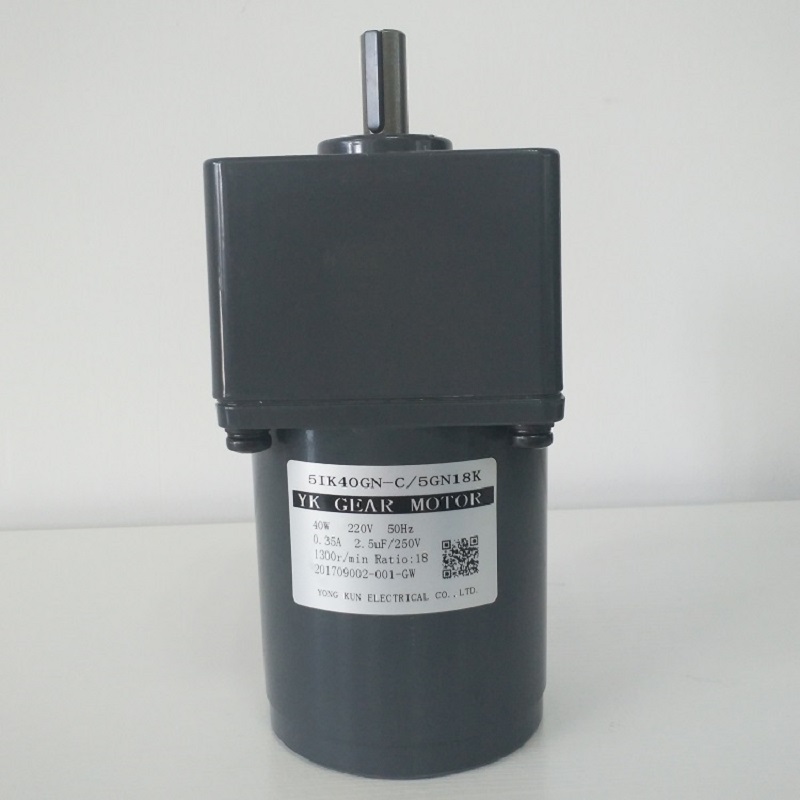

微型減速電機，220V單相減速電機，微型減速電機定制，微型減速電機廠家

減速機結構：小模數斜齒輪

一.電氣性能:

　　1.電源:　單相:100V、110V、115V、200V、240V

             三相:200V、220V、 380V、400V、415V、440V

    2.電動機功率3W,6W, 15W, 25W, 40W, 60W, 90W，120W,150W,200W ，250W

    3.軸:D型切軸和鍵軸(英制, 公制)

    4.外殼:壓鑄鋁外殼

    5.安裝:底腳和法蘭

    6.標準:UL和CUL (115V-單相/230V-三相),CE (帶溫度保護)

    7.潤滑油: 高級油脂 免維護

二.產品說明

　　小功率電機和齒輪減速機的完美組合，電機有感應電機，阻尼電機，調速電機，剎車電機，力矩電機，電機電磁方案通過ANSOFT MAXWELL軟件優化設計，齒輪采用等離滲氮熱處理，高精度CNC硬切削工藝，具有傳遞效率高，低溫升、低噪音及使用壽命長等特點。大規模批量化流水線生產，穩定的品質和高性價比競的價格，是機械設備制造企業的優選產品。

三.特征和優點

    1. 精密的球型軸承，鋼制齒輪和鑄鋁外殼造就了高品質以及堅固的結構

    2. 全壽命油脂潤滑的設計提供了免維護運行

    3. 中間級斜齒輪結合鋼制平行軸的設計提供最大機械效率

    4.密封齒輪頭符合世界通用標準,可安裝于狹小空間,且安裝方向不受限制

    5. 多種電動機、制動單元和速度控制器的組合滿足廣泛的應用

廣泛應用于：電子設備，印刷機械，紡織機械，環保機械，木工機械、包裝機械、輸送物流設備、農業機械、數控機床設備，焊接機械，醫療設備、食品機械，塑料機械，玻璃機械等。

2IK6GN-C 2IK6RGN-C 2IK6GN-CM 2IK6RGN-CM 2IK6A-C
3IK15GN-C 3IK15RGN-C 3IK15GN-CM 3IK15RGN-CM 3IK15A-C
4IK25GN-C 4IK25RGN-C 4IK25GN-CM 4IK25RGN-CM 4IK25GN-Y 4IK25GN-YM 4IK25A-C 4IK25A-Y
5IK40GN-C 5IK40RGN-C 5IK40GN-CM 5IK40RGN-CM 5IK40GN-Y 5IK40GN-YM 5IK40A-C 5IK40A-Y
5IK60GN-CF 5IK60RGN-CF 5IK60GN-CMF 5IK60RGN-CMF 5IK60GN-YF 5IK60GN-YMF 5IK60A-CF 5IK60A-YF
5IK60GU-CF 5IK60RGU-CF 5IK60GU-CMF 5IK60RGU-CMF 5IK60GU-YF 5IK60GU-YMF 5IK60A-CF 5IK60A-YF
5IK90GN-CF 5IK90RGN-CF 5IK90GN-CMF 5IK90RGN-CMF 5IK90GN-YF 5IK90GN-YMF 5IK90A-CF 5IK90A-YF
5IK90GU-CF 5IK90RGU-CF 5IK90GU-CMF 5IK90RGU-CMF 5IK90GU-YF 5IK90GU-YMF 5IK90A-CF 5IK90A-YF
5IK120GN-CF 5IK120RGN-CF 5IK120GN-CMF 5IK120RGN-CMF 5IK120GN-YF 5IK120GN-YMF 5IK120A-CF 5IK120A-YF
5IK120GU-CF 5IK120RGU-CF 5IK120GU-CMF 5IK120RGU-CMF 5IK120GU-YF 5IK120GU-YMF 5IK120A-CF 5IK120A-YF
6IK140GN-CF 6IK140RGN-CF 6IK140GN-CMF 6IK140RGN-CMF 6IK140GN-YF 6IK140GN-YMF 6IK140A-CF 6IK140A-YF
6IK140GU-CF 6IK140RGU-CF 6IK140GU-CMF 6IK140RGU-CMF 6IK140GU-YF 6IK140GU-YMF 6IK140A-CF 6IK140A-YF
6IK160GN-CF 6IK160RGN-CF 6IK160GN-CMF 6IK160RGN-CMF 6IK160GN-YF 6IK160GN-YMF 6IK160A-CF 6IK160A-YF
6IK160GU-CF 6IK160RGU-CF 6IK160GU-CMF 6IK160RGU-CMF 6IK160GU-YF 6IK160GU-YMF 6IK160A-CF 6IK160A-YF
6IK180GN-CF 6IK180RGN-CF 6IK180GN-CMF 6IK180RGN-CMF 6IK180GN-YF 6IK180GN-YMF 6IK180A-CF 6IK180A-YF
6IK180GU-CF 6IK180RGU-CF 6IK180GU-CMF 6IK180RGU-CMF 6IK180GU-YF 6IK180GU-YMF 6IK180A-CF 6IK180A-YF
6IK200GN-CF 6IK200RGN-CF 6IK200GN-CMF 6IK200RGN-CMF 6IK200GN-YF 6IK200GN-YMF 6IK200A-CF 6IK200A-YF
6IK200GU-CF 6IK200RGU-CF 6IK200GU-CMF 6IK200RGU-CMF 6IK200GU-YF 6IK200GU-YMF 6IK200A-CF 6IK200A-YF
6IK250GN-CF 6IK250RGN-CF 6IK250GN-CMF 6IK250RGN-CMF 6IK250GN-YF 6IK250GN-YMF 6IK250A-CF 6IK250A-YF
